Stainless Steel Threaded Pipe Fittings Manufacturers, Suppliers, Stockist – ANSI B16.11, ASTM A105, ASTM A182 F304, F316, F304L, F316L, Duplex, Super Duplex

304/1.4301 Stainless Steel Threaded Fitting 321/1.4541 Stainless Steel Threaded Fitting
304L/1.4307 Stainless Steel Threaded Fitting 317L/1.4449 Stainless Steel Threaded Fitting
304H/1.4948 Stainless Steel Threaded Fitting 347H/1.4912 Stainless Steel Threaded Fitting
316/1.4401 Stainless Steel Threaded Fitting 309S/1.4833 Stainless Steel Threaded Fitting
316L/1.4404 Stainless Steel Socket Weld Fitting 310S/1.4845 Stainless Steel Threaded Fitting
316Ti/1.4571 Stainless Steel Socket Weld Fitting 904L Stainless Steel Threaded Fitting
  • Size: from 1/4″ to 4″ (6mm-100mm), Pressure: 2000LBS, 3000LBS, 6000LBS, 9000LBS

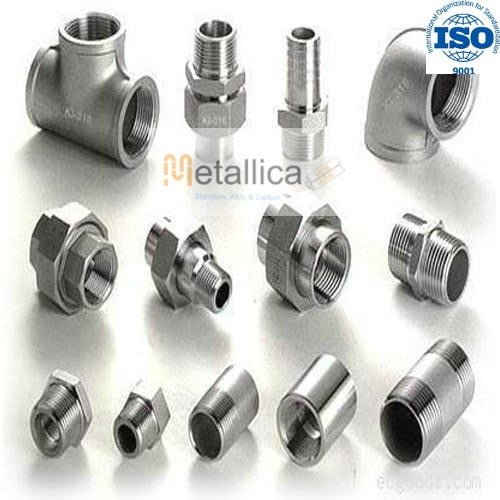

  • Stainless Steel Threaded Pipe Fittings 90° Elbow, 45° Elbow, Tee, Cross, Full Coupling, Half Coupling, Reducing Coupling, Pipe Cap, Hex Head, Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Union, Hex Nipple, Street Elbow, Bull Plug, Boss, Swage Nipple, Pipe Nipple, Adapter, Union (Male x Female), Branch Outlet, 90° Elbow Outlet, 45° Lateral Tee, Lateral Outlet, Nipple Branch Outlet

Metallica is a well known manufacturer and supplier of stainless steel threaded pipe fitting for the clients from oil and gas, petrochemicals, railway, construction and other industries. We manufacture different size and shapes of stainless steel threaded pipe fittings by closed die forging. Our main products include stainless steel threaded pipe fittings in size range of 1/4″ to 4″ (6mm-100mm), with pressure rating of 2000LBS, 3000LBS, 6000LBS, and 9000LBS. The most common and materials include ASTM A105, ASTM A182 F304, F316, F304L, F316L, and A182 F5/F9/F11/F22/F91. In nickel alloys we manufacture threaded pipe fittings in various grades such as Alloy 200, 201, 400, K500, 600, 625, 800H/HT, 825, X-750, C276, Hastelloy B & C22.

Forged Socket Weld & Threaded Pipe Fittings Manufacturing Standards

  • ASTM A182 – ASME SA182 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
  • ASME B16.9 – Factory-Made Wrought Buttwelding Fittings
  • ASME B16.11 – Socket Welding and Threaded Forged Fittings
  • MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
  • MSS SP-95 – Swage(d) Nipples and Bull Plugs
  • BS3799 – Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry

Stainless Steel threaded pipe fittings are generally used for small size pipes and piping systems (generally below 4 inches in diameter for Class 3000, and below 2 inches for fittings in class 6000 and 9000). Stainless Steel threaded pipe fittings are manufactured by forging, followed by heat treatment and machining solid steel as per ASME B16.11 and other dimensional standards. For bigger size piping systems buttweld pipe fittings produced as per ASME B16.9 are used.

Stock Range of Stainless Steel Threaded Fittings

Product Stainless Steel Threaded Fittings
Type Elbow 90°, Tee, Reducing Tee, Cross, Street Elbow 90°, Elbow 45°, Union,
Plug, Bushing, Nipple, Cap, Socket, Coupling, Welding nipple,
Barrel nipple and hose barrel nipple etc
Standard ASME B16.9, GB/T12459, GB/T13401, SH3408, SH3409, HG/T216345, HG/T21631, MSS SP-43, DIN2605, JIS B2313
Grades 304/L, 316/L, 321/L, 317/L, 347/H, 904L, 310S, Duplex 2205/S31803/F51, 2507/S32750/F53, ASTM A234, WPB/ WPC/ WP11/ WP22
Wall Thickness SCH5S-XXS
Size Welded: 1/2″-48″ (DN15-DN1200)
Seamless 1/2″-24″(DN15-DN600)
Surface Treatment Polished, Mirror finish, Sand Blast, Varnished Transparent oil, Rust-proof oil, Hot galvanizing
Radius Long radius,Short radius ,R=1.5D,R=3D,R=5D,female,male,etc
Connection Male or Female
Dimension ANSI B16.3
Thread NPT, BSP, BSPT, DIN2999 ISO7/1, and threads with special requirements
Pressure Rate  ANSI Class 150, 300, 600, 900, 1500 and 2500
DIN PN 6, PN 10, PN16, PN25, PN40 and PN64
JIS 5K, 10K, 16K and 20K
Casting Process Made By Lost Wax Investment Casting
End Treatment Bevel Ends , Plain Ends , or as per Clients Requirements
Application Construction, Industrial material
Packing In wooden cases, wooden pallets or as per customers special requirement
Price Term FOB, CIF, CFR

Threaded fittings are normally made of cast gray or malleable iron, cast brass or bronze, or forged alloy and carbon steel. They are available in three pressure ratings: Class 2000, 3000 and 6000. At the smallest sizes, the amount of wall lost during threading actually equals approximately 55% of the original pipe wall.

Socket weld and Threaded Pipe Fittings are forged product and classified based on its pressure-temperature rating. Socket weld & Threaded end fittings are available from NPS 1/8” to 4”. These fittings are available in four pressure-temperature rating class.

  • 2000 class fittings are available in only in threaded type.
  • 3000 & 6000 class fittings are available in both Threaded and Socket Weld types.
  • 9000 class fittings are available in only socket weld type.

Socket and threaded fittings are used for small bore and low-pressure piping.

Manufacturing Process for Stainless Steel Threaded Pipe Fittings

  • Forged fittings are the fittings made by forged steel. The process of manufacturing forged steel fittings include: cutting and heating billets, put pressure on heated billets under dies into desired shape, trimming and shot blasting. Then machine forged blank fittings for net shape and dimensions. According to the applications of forged steel fittings, they are available in threaded and socket weld end connections.
  • The main raw material for producing forged pipe fittings is round bar stock or billets.
  • Most of the forged steel fittings are not large, so closed die forging is normally adapted to produce forged steel fittings. Compared to the open die forging, the close die forging can achieve more complex geometries, very much close to the dimensions of the finished component.
  • Close die forging can produce forged fittings in all materials such as carbon steel, duplex, stainless steel or nickel alloys.

Types of Stainless Steel Socket Welded & Threaded Forged Steel Pipe Fittings

  1. Stainless Steel Threaded Elbows (90 Degree Elbows and 45 Degree Elbows) – A pipe elbow is a forged steel fitting installed between two lengths of pipe or tube allowing a change of direction, usually in the 90° or 45° direction. Similar to a reducing tee, reducing elbows also exist to simultaneously change flow direction and reduce flow diameter. Street Elbows have one female end to accept pipe and another male end thread that is the same size as the pipe and can avoid the use of a pipe nipple during installation.
  2. Stainless Steel Threaded Tees (Equal Tee and Reducing Tees)– Tees are a type of forged steel fitting used to combine or divide process flow, and Reducing Tees additionally allow for pipe size change. The run outlets of the tee are the two in-line outlets, and the branch is the third outlet. The branch outlet is the reducing outlet in a reducing tee.
  3. Stainless Steel Threaded Couplings (Straight and Reducing Couplings, Full and Half Couplings) – Couplings are a forged steel fitting used to connect two lengths of pipe, and Half-coupling is screwed onto the pipe, while the other end is made to be tightly inserted, or welded, onto the other end to pipe or vessel. Standard Couplings have female threads or open sockets at both ends, whereas reducing couplings connect smaller pipes to larger ones.
  4. Stainless Steel Threaded Unions– Unions are a forged steel fitting similar to a coupling but allow a convenient disconnection and connection; it has 3 parts: a nut, a female end, and a male end. They allow two lengths of pipe to be assembled and detached without causing any deformation to the pipes.
  5. Stainless Steel Threaded Bushings (Hex Head Bushings and Flush Bushings) – Reducing inserts and Bushings are forged steel fittings that allow for a change in pipe size. Pictured here is the hex head bushing, which is most commonly used.
  6. Stainless Steel Threaded Caps (Pipe Caps and End Caps) – Caps are forged steel fittings used to terminate the flow, inserting over the end of the pipe.
  7. Stainless Steel Threaded Plug (Square Head Plugs, Hex Head Plugs and Round Head Plugs) – Similar to a cap, plugs are forged steel fittings that are inserted into the end of the pipe, and they come with different head types, including: hex, square, and round.
  8. Stainless Steel Threaded Cross – Crosses are a 4-way forged steel fitting, with 1 inlet and 3 outlets or vice versa. These are sometimes referred to as 4-way tees.
  9. Stainless Steel Threaded Outlets (Weldolets, Sockolets, Threadolets, Elbolets, Latrolets and Nipolets)
  10. Stainless Steel Threaded Nipples (Hexagonal Nipples and Swaged Nipples)

Chemical Composition of Stainless Steel Threaded Pipe Fittings

Chemical Composition %
Grade C Si Mn P S Ni Cr Mo N
201    (1Cr17Mn6Ni5N) ≤0.15 ≤1.0 ≤5.5 ≤0.06 ≤0.03 3.5-5.5 16.0-18.0 ≤0.25
202    (1Cr18Mn8Ni5N) ≤0.15 ≤0.07 ≤7.5 ≤0.06 ≤0.03 4.0-6.0 17.0-19.0 ≤0.25
304    0Cr18Ni9) ≤0.08 ≤0.07 ≤2.0 ≤0.04 ≤0.03 8.0-11.0 18.0-20.0
304L  (00Cr18Ni10) ≤0.03 ≤0.07 ≤2.0 ≤0.04 ≤0.03 8.0-11.0 18.0-20.0
316    (0Cr17Ni12Mo2) ≤0.08 ≤0.07 ≤2.0 ≤0.04 ≤0.03 11.0-14.0 16.0-18.0 2.0-3.0
316L   (0Cr17Ni14Mo2) ≤0.03 ≤0.07 ≤2.0 ≤0.04 ≤0.03 11.0-14.0 16.0-18.0 2.0-3.0
321     ≤0.08 ≤1.0 ≤2.0 ≤0.04 ≤0.03 9.0-12.0 17.0-19.0 Ti≥5xC
409 ≤0.08 ≤1.0 ≤1.0 ≤0.04 ≤0.03 ≤0.5 10.5-11.7 Ti6xC%≤0.70
409L ≤0.03 ≤1.0 ≤1.0 ≤0.04 ≤0.03 0.5 10.5-11.7 Ti8xC%≤0.70
430 ≤0.12 ≤1.0 ≤1.0 ≤0.04 ≤0.03 16.0-18.0

Testing & Inspection of Stainless Steel Threaded Pipe Fittings

Testing (Destructive, Non Destructive)

Positive Material Identification – PMI Testing Hydrostatic Test
Chemical Analysis – Spectro Analysis Hydrogen-Induced Cracking (HIC) Test
Mechanical Testing Such as Tensile, Elongation, Reduction of Area Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Micro Test Radiography Test
Macro Test Dye Penetrant Test (DP Test)
Hardness Test Ultra Sonic Test (UT)
Pitting Resistance Test Eddy Current Testing
Intergranular Corrosion (IGC) Test Impact Test
Flaring Test Bend Test
Flattening Test

Inspection

  • Our internal inspection reports would be provided for all the goods before shipment.
  • Buyers or their associates are most welcome to visit us for personal inspect
  • We regularly have inspections ongoing at our premises from internationally acclaimed Inspection Agencies such as TUV, BVIS, SGS, Llyods, DNV etc.

Prices for Stainless Steel Threaded Pipe Fittings

Prices for stainless steel buttweld pipe fittings are directly co related to prices of the raw materials such as iron ore, metal scrap, chromium, nickel and various other alloying elements. The production cost of heat resistant stainless steel and nickel alloy plates is high as they contain high amount of nickel and chromium. Meanwhile, mild steel material is among the lowest cost steel available, followed by carbon steel, 400 series stainless steels, aluminium, alloy steel, and 300 series stainless steel. Special alloys such as titanium, Inconel, Monel and Hastelloy cost very high as the nickel, chromium and moly content is very high.

For special and discounted prices for various types of stainless steel threaded pipe fittings, please feel free to contact us through email, phone or whatsapp.

We are also regularly publishing our price list for various steel products on our blog.

Documents Provided at the time of Domestic Sales or Export of Stainless Steel Threaded Pipe Fittings

Certificate of Origin Raw Material Test Reports
Commercial Invoice Heat Treatment Charts
Packing List Quality Assurance Plan (QAP)
Fumigation Certificates NABL approved Laboratory Test Reports
Letter of Guarantee Material Test Certificates
ROHS Certificate Certificate of Compliance/Conformity

Price Basis for Stainless Steel Threaded Pipe Fittings

We can offer any of the following price basis depending on your requirement:

  • Ex-works
  • FOR Site in India
  • FOB Nhava Sheva
  • CFR, CIF, CPT your destination port
  • Door to Door Delivery Duty Paid as well as Duty Unpaid

Delivery Time of Stainless Steel Threaded Pipe Fittings

  • If the items are available in stock, we take 2 days from the date of receipt of advance payment to clear the shipment and send it to port.
  • And in-case the items are not available in stock, the time taken for manufacturing depends on the size, quantity and grade.
  • However we can claim the fact that we can compete with anyone in India on Delivery time and most of the time our production time is the least.
  • We have tied up with strong logistic partners in India which can undertake any type of shipping activities and make sure that there is no delay in shipment.
