180 Degree Elbow Manufacturers, Suppliers and Stockists –  ASME B16.9 Standard 180 Degree Elbow Factory

  • Metallica is one of the leading carbon steel 180 degree elbow, stainless steel 180 degree elbow, alloy steel 180 degree elbow manufacturer and supplier. We also manufacture customized products as per customers’ requirements and ensure 100% best quality and tested products.
  • An elbow is a pipe fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 180° or 90° angle. 180 degree elbows are used to be installed between two lengths of pipe or tube allowing a change of 180° direction. We can provide short radius elbows and long radius elbows. Usually, 180 degree elbow is made of duplex stainless steels, stainless steels, alloy steels, and more.
  • We manufacture welded, seamless and fabricated 180 degree elbows. Elbows manufactured by Metallica offer high service life and at the same time our products are most economically priced. We have a huge customer base for seamless pipes and pipe fittings, allowing us to offer the best discount to our customers. Our focus is clearly to increase the number of customers and help our customers purchase the best quality goods at lowest prices. We offer price guarantee for most of our products i.e we can match any price target if it is reasonably possible.
  • We produce 180 degree elbows as per ASTM, ASME and DIN standards. We produce 180 degree elbows in carbon steel, alloy steel, stainless steel, super austenitic, duplex, super duplex, nickel alloys, titanium, titanium composite and aluminum, etc. Our products are widely used in oil & gas, petrochemical, refineries, power plant, shipbuilding, metallurgy, paper making and other industries.

Stock and Production Range for Pipe Elbows

Product 180 Degree Elbow
Type Seamless or Welded
Product Class LR, SR, 30°, 45°, 60°, 90°, 180°
Produce Technology Seamless, Welding
Size Seamless size from DN15-DN700; Welding size:DN200-DN2000
Thickness SCH10,SCH20,SCH30,STD,SCH40,SCH60,SCH80,SCH100,SCH120,SCH160,XS,XXS    HIGH THICKNESS TO 80MM
Material Materials :
* A234 – WPB  WP5, WP9, WP11, WP22
* A420 – WPL3/ WPL6
* A403 – WP304/L; WP316/L
* A860-WPHY 42-46/52-60/65-70
Special Materials such as Monel, Inconel, Cu-Ni, Duplex SS etc are available on request
Standard ASME B16.9
Face Coatings: Special Coating i.e. Cement Mortar Lining, FBE Coating, Galvanized (Hot Dipped Electro-Plating) etc. can be provided
Inspection Chemical Elements,  Mechanical Property,  Metallographic Test,  HIC /SSC,   Heat Treatment,    Ultrasonic Test,   Penetration Test,   Magnetic Powder Test,    X-Ray Test,  Hydraulic Pressure Test,  Blasting Experiment, we can make them according to your request.
Application Water Disposal, Electric Power, Chemical Engineering, Ship Building, Nuclear Energy, Garbage Disposal, Natural Gas, Petroleum Oil.

Other Features:

  • Size Range

    • Seamless elbow: 1/2″-24″ DN15-DN600
    • Welding elbow: 6″-72″ DN150-DN1800
    • Wall thickness: Sch5-Sch160 XXS
  • Recommended type of Elbows

    • Big diameter elbows
    • Large diameter elbow
    • Small size elbow
    • Forged Elbow, Elbow Fittings
  • Elbows are categorized based on various design features as below:

    • Long Radius (LR) Elbow is also called LR elbow – means the radius is 1.5 times the pipe diameter
      • L/R 45°Elbow: Long radius 45 degree elbow changes the direction by 45 degrees.
      • L/R 90°Elbow: Long radius 90 degree elbow changes the direction by 90 degrees.
      • L/R 180°Elbow: Long Radius 180 degree return bend allows complete reversal of flow.
    • Short Radius (SR) Elbow is also called SR elbow, – means the radius is 1.0 times the pipe diameter

Dimensions of ASME B16.9 Long Radius Returns – 180 Degree Elbows, R=1.5D

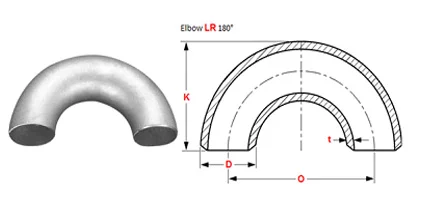

ASME B16.9 180 Degree Long Radius Elbows Returns
Nominal Pipe (NPS) Outside Diameter at Bevel Center to center, O Back to face, K
mm. mm. mm.
in. in. in.
1/2 21.3 76 48
0.84 3 1.88
3/4 26.7 76 51
1.05 3 2
1 33.4 76 56
1.32 3 2.19
1 1/4 42.2 95 70
1.66 3.75 2.75
1 1/2 48.3 114 83
1.9 4.5 3.25
2 60.3 152 106
2.38 6 4.19
2 1/2 73 190 132
2.88 7.5 5.19
3 88.9 229 159
3.5 9 6.25
3 1/2 101.6 267 184
4 10.5 7.25
4 114.3 305 210
4.5 12 8.25
5 141.3 381 262
5.56 15 10.31
6 168.3 457 313
6.62 18 12.31
8 219.1 610 414
8.62 24 16.31
10 273 762 518
10.75 30 20.38
12 323.8 914 619
12.75 36 24.38
14 355.6 1067 711
14 42 28
16 406.4 1219 813
16 48 32
18 457 1372 914
18 54 36
20 508 1524 1016
20 60 40
22 559 1676 1118
22 66 44
24 610 1829 1219
24 72 48

Dimensions of ASME B16.9 Short Radius Returns – 180 Degree Elbows, R=1.0D

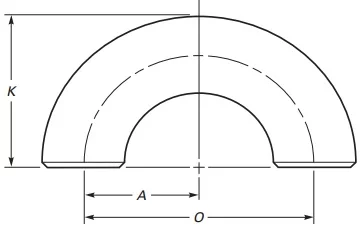

ASME B16.9 180 Degree Short Radius Elbows Returns
Nominal Size Outside Diameter at Bevel Center to Center Back to Back
NPS mm. O K
in. mm. mm.
in. in.
1 33.4 51 41
1.32 2 1.62
1 1/4 42.2 64 52
1.66 2.5 2.06
1 1/2 48.3 76 62
1.9 3 2.44
2 60.3 102 81
2.38 4 3.19
2 1/2 73 127 100
2.88 5 3.94
3 88.9 152 121
3.5 6 4.75
3 1/2 101.6 178 140
4 7 5.5
4 114.3 203 159
4.5 8 6.25
5 141.3 254 197
5.56 10 7.75
6 168.3 305 237
6.62 12 9.31
8 219.1 406 313
8.62 16 12.31
10 273 508 391
10.75 20 15.38
12 323.8 610 467
12.75 24 18.38
14 355.6 711 533
14 28 21
16 406.4 813 610
16 32 24
18 457 914 686
18 36 27
20 508 1016 762
20 40 30
22 559 1118 838
22 44 33
24 610 1219 914
24 48 36
