Production Range of Sweep Outlet

Product Sweep Outlet
Connection Butt Weld
Size 1/2″ NPS TO 24″ NPS
Pressure Rating 3000LB, 6000LB, 9000LB (SCH80/XS, SCH160, XXS)
Process method Forged, CNC Machined
Standards: ASME B31.3, MSS SP 97
Certification EN 10204 3.1
  • Thread: NPT, NPSC, BSPT, BSPP, Type: Male and Female
  • The MSS SP-97 Standard Practice covers essential dimensions, finish, tolerances, testing, marking, material, and minimum strength requirements for 90 degree integrally reinforced forged branch outlet fittings of buttwelding, socket welding, and threaded types. Fittings manufactured to this Standard Practice are designed to make a fully reinforced branch connection in accordance with applicable piping code requirements, when attached, at an opening in a run pipe by means of a full penetration weld.
  • ASME B31.3 contains requirements for piping typically found in petroleum refineries; chemical, pharmaceutical, textile, paper, semiconductor, and cryogenic plants; and related processing plants and terminals. It covers materials and components, design, fabrication, assembly, erection, examination, inspection, and testing of piping.

Sweep Outlet Dimensions – MSS SP-97, ASME B31.3

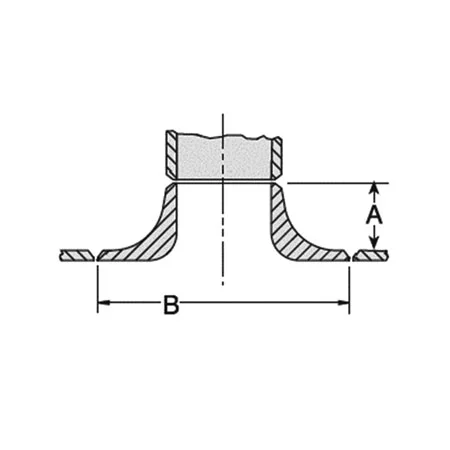

Sweepolet Drawing - Sweep Outlet

Sweep Outlet Drawing

Run Size Outlet Size Dimensions
Inches *A B
6 to 36 1 1/4 1 1/4 4
6 to 36 1 1/2 1 3/4 5 1/2
6 to 36 2 1 1/2 5 1/2
6 to 36 3 1 21/32 7
6 to 36 4 2  1/32 8 3/4
10 to 36 6 2 11/16 13
12 to 36 8 3 15
16 to 36 10 3 1/8 18 1/2
16 to 36 12 3  5/16 20 1/2
20 to 36 14 3 5/8 24
24 to 36 16 3 3/4 28
24 to 36 18 4 5/8 31
24 to 36 20 5 1/8 33
30 to 36 24 5 5/8 38
  • A sweep outlet is a type of  integrally reinforced branch connection used to facilitate radiography, one or many non-destructive tests (NDT) used to inspect welds.
  • This type of NDT uses Gamma or X-rays to penetrate material. The rays are then passed through film on the opposite side .the exposed film is examined as a negative and displays the internal features The thickness of the weld is shown through lighter or darker areas on the film.

MSS SP-97 Forged Branch Outlet Fittings – Socket Welding, Threaded, Buttwelding Ends – ASTM A105, A182 F304, F316, F304L, F316L, and A182 F5, F9, F11, F22, F91

  • Size: from 1/2″ NPS TO 24″ NPS, Pressure Rating: 3000LB, 6000LB (SCH80/XS,SCH160), Thread: NPT, NPSC, BSPT, BSPP, Type: Male and Female
  • Types of Outlets – Butt Weld Outlet, Socket Weld Outlet, Threaded Outlet, Elbow Outlet, Lateral Outlet, Nipple Outlet, Sweep Outlet, Flanged Nipple Outlet

Metallica is a well known manufacturer and supplier of forged branch outlet fittings for the clients from oil and gas, petrochemicals, railway, construction and other industries. Branch outlets are popularly known as Olets, which is a registered trademark of Bonney Forge. Fittings may be made to special dimensions, size, shape, tolerances, or of other wrought material by agreement between the manufacturer and the purchaser. We can produce forged branch outlet fittings in size range of 1/2″ to 24″. The most common and materials include ASTM A105, ASTM A182 F304, F316, F304L, F316L, and A182 F5/F9/F11/F22/F91. In nickel alloys we manufacturing forged branch outlets in various grades such as Alloy 200, 201, 400, K500, 600, 625, 800H/HT, 825, X-750, C276, Hastelloy B & C22.
