Stainless Steel Duplex 2205 Forged FittingsSS Duplex 2205 Socket Weld Pipe Fittings, SS Duplex 2205 Threaded Pipe Fittings – S31803/S32205, 1.4462 Forged Fittings

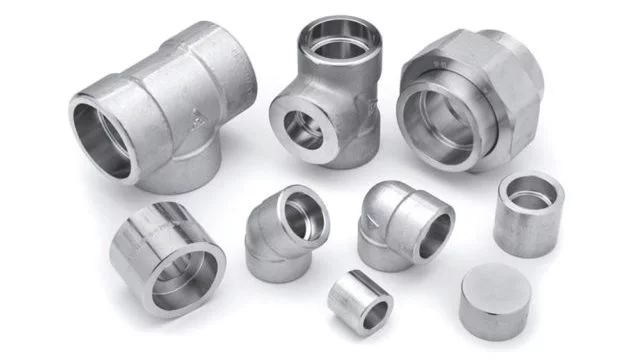

Forged Pipe Fittings Manufacturers

Stainless Steel Duplex 2205 Forged Pipe Fittings Manufacturers

Types of Stainless Steel Duplex 2205 Socket Welded & Stainless Steel Duplex 2205 Threaded Forged Steel Pipe Fittings

  1. Stainless Steel Duplex 2205 Elbows (90 Degree Elbows and 45 Degree Elbows) – A pipe elbow is a forged steel fitting installed between two lengths of pipe or tube allowing a change of direction, usually in the 90° or 45° direction. Similar to a reducing tee, reducing elbows also exist to simultaneously change flow direction and reduce flow diameter. Street Elbows have one female end to accept pipe and another male end thread that is the same size as the pipe and can avoid the use of a pipe nipple during installation.
  2. Stainless Steel Duplex 2205 Tees (Equal Tee and Reducing Tees)- Tees are a type of forged steel fitting used to combine or divide process flow, and Reducing Tees additionally allow for pipe size change. The run outlets of the tee are the two in-line outlets, and the branch is the third outlet. The branch outlet is the reducing outlet in a reducing tee.
  3. Stainless Steel Duplex 2205 Couplings (Straight and Reducing Couplings, Full and Half Couplings) – Couplings are a forged steel fitting used to connect two lengths of pipe, and Half-coupling is screwed onto the pipe, while the other end is made to be tightly inserted, or welded, onto the other end to pipe or vessel. Standard Couplings have female threads or open sockets at both ends, whereas reducing couplings connect smaller pipes to larger ones.
  4. Stainless Steel Duplex 2205 Unions (Socket Weld Unions and Threaded Unions) – Unions are a forged steel fitting similar to a coupling but allow a convenient disconnection and connection; it has 3 parts: a nut, a female end, and a male end. They allow two lengths of pipe to be assembled and detached without causing any deformation to the pipes.
  5. Stainless Steel Duplex 2205 Bushings (Hex Head Bushings and Flush Bushings) – Reducing inserts and Bushings are forged steel fittings that allow for a change in pipe size. Pictured here is the hex head bushing, which is most commonly used.
  6. Stainless Steel Duplex 2205 Caps (Pipe Caps and End Caps) – Caps are forged steel fittings used to terminate the flow, inserting over the end of the pipe.
  7. Stainless Steel Duplex 2205 Plug (Square Head Plugs, Hex Head Plugs and Round Head Plugs) – Similar to a cap, plugs are forged steel fittings that are inserted into the end of the pipe, and they come with different head types, including: hex, square, and round.
  8. Stainless Steel Duplex 2205 Cross – Crosses are a 4-way forged steel fitting, with 1 inlet and 3 outlets or vice versa. These are sometimes referred to as 4-way tees.
  9. Stainless Steel Duplex 2205 Outlets (Weldolets, Sockolets, Threadolets, Elbolets, Latrolets and Nipolets)
  10. Stainless Steel Duplex 2205 Nipples (Hexagonal Nipples and Swaged Nipples)

Duplex 2205 Forged Fittings Stock & Product Specification

ProductStainless Steel Duplex 2205 Forged Fittings
EquivalentDuplex 2205, UNS S31803, F51 | UNS S32205, 1.4462, F60
StandardASTM A182 & ASME SA182
ItemsForged Fittings
Size1/2″ to 18″; Thickness 0.6mm to 20mm
DimensionsANSI/ASME B16.9, B16.28, MSS-SP-43
ScheduleSCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Fittings TypeButt Weld, Screwed & Socket Weld, Flanges, Instrumentation
Other Fittings TypeElbows, Tees, Reducers, Caps, Stub Ends, Flanges (ANSI, Table E, D and H), Nuts, Bolts, Screws, Threaded Bars, Seamless, Welded, Elbow, Tee, Cross,  Concentric & Eccentric Reducer, Pipe End Caps, Stub Ends, Bends, Dairy Fittings, etc.
SpecificationsASTM, ASME, DIN, GOST, JIS
CertificationEN 10204 3.1

Equivalents of Duplex Stainless Steel Forged Fittings

StandardDuplex 2205
UNSS31803 / S32205
Werkstoff Nr.1.4462

Chemical Composition of Duplex Stainless Steel Forged Fittings

GradeCMnSiPSCrMoNiN
2205 (S31803)Min212.54.50.08
Max0.03210.030.02233.56.50.2
2205 (S32205)Min2234.50.14
Max0.03210.030.02233.56.50.2

Mechanical Properties of Duplex 2205 (UNS S32205, 1.4462), UNS S31803 Forged Fittings

  • Duplex Stainless Steels have roughly twice the yield strength of their counterpart austenitic grades. This allows equipment designers to use thinner gauge material for vessel construction
Tensile Strength,min.Yield Strength,min.Elongation,min.Hardness Brinell, max
MpaMpa%HB
62045025290

Physical Properties of Duplex 2205 (UNS S32205, 1.4462), UNS S31803 Forged Fittings

Density7.8 g/cm3
Melting Point1440 °C (2625 °F)

Duplex Stainless Steel (2205, UNS S31803, UNS S32205, 1.4462) Product Forms and Manufacturing Standards

Product FormsMaterial Standards
Plates, Sheets & StripsASTM A240, EN 10088-2
Billets, Bars & RodsASTM A276, A479, A484, EN 10088-3
Forgings (Flanges & Fittings)ASTM A182
WiresASTM A313, A580.
Seamless and Welded PipesASTM A790 (Pipes), ASTM A790 (Tubes)
Wrought Buttweld Pipe FittingsASTM A815
  • Metallica supplies Duplex stainless steel in various grades such as ASTM A790 UNS S32205, ASTM A182 F60 (Forgings), ASTM A815 UNS S32205/UNS S31803 (Buttweld Fittings), ASTM A240 UNS S32205/UNS S31803 (Sheets & Plates).

Testing & Inspection of Duplex 2205/ UNS S32205/ UNS S31803 Forged Fittings

Testing (Destructive, Non Destructive)

Positive Material Identification – PMI TestingHydrostatic Test
Chemical Analysis – Spectro AnalysisHydrogen-Induced Cracking (HIC) Test
Mechanical Testing Such as Tensile, Elongation, Reduction of AreaSulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Micro TestRadiography Test
Macro TestDye Penetrant Test (DP Test)
Hardness TestUltra Sonic Test (UT)
Pitting Resistance TestEddy Current Testing
Intergranular Corrosion (IGC) TestImpact Test
Flaring TestBend Test
Flattening Test

Inspection

  • Our internal inspection reports would be provided for all the goods before shipment.
  • Buyers or their associates are most welcome to visit us for personal inspect
  • We regularly have inspections ongoing at our premises from internationally acclaimed Inspection Agencies such as TUV, BVIS, SGS, Llyods, DNV etc.

Prices for Duplex Stainless Steel Forged Fittings

Prices for Duplex 2205 Stainless Steel Forged Fittings are directly co related to prices of the raw materials such as iron ore, metal scrap, chromium, nickel and various other alloying elements. The production cost of heat resistant stainless steel and nickel alloy plates is high as they contain high amount of nickel and chromium. Meanwhile, mild steel material is among the lowest cost steel available, followed by carbon steel, 400 series stainless steels, aluminium, alloy steel, and 300 series stainless steel. Special alloys such as titanium, Inconel, Monel and Hastelloy cost very high as the nickel, chromium and moly content is very high.

For special and discounted prices for various types of Duplex stainless steel Forged Fittings, please feel free to contact us through email, phone or whatsapp.

We are also regularly publishing our price list for various steel products on our blog.

Documents Provided at the time of Domestic Sales or Export of Duplex Stainless Steel Forged Fittings

Certificate of OriginRaw Material Test Reports
Commercial InvoiceHeat Treatment Charts
Packing ListQuality Assurance Plan (QAP)
Fumigation CertificatesNABL approved Laboratory Test Reports
Letter of GuaranteeMaterial Test Certificates
ROHS CertificateCertificate of Compliance/Conformity

Price Basis for Duplex 2205 /UNS32205 / UNS S31803 Forged Fittings

We can offer any of the following price basis depending on your requirement:

  • Ex-works
  • FOR Site in India
  • FOB Nhava Sheva
  • CFR, CIF, CPT your destination port
  • Door to Door Delivery Duty Paid as well as Duty Unpaid

Delivery Time of Duplex Stainless Steel Forged Fittings

  • If the items are available in stock, we take 2 days from the date of receipt of advance payment to clear the shipment and send it to port.
  • And in-case the items are not available in stock, the time taken for manufacturing depends on the size, quantity and grade.
  • However we can claim the fact that we can compete with anyone in India on Delivery time and most of the time our production time is the least.
  • We have tied up with strong logistic partners in India which can undertake any type of shipping activities and make sure that there is no delay in shipment.

Marking & Packing of Duplex 2205 Stainless Steel Forged Fittings

  • All our products will have complete marking details which are co-related to the test certificates we supply.
  • In case of orders for cut piece of Pipes, Sheets or Round Bars, the marking is transferred from the product from which it is cut. In such cases we provide Letter confirming the marking transfer and picture of the product from which it is cut.
  • All goods are packed in wooden cases or pallets.
