Stainless Steel Capillary Tubes/Pipes

Home/Pipes & Tubes/Stainless Steel Pipes/Stainless Steel Capillary Pipes/Tubes

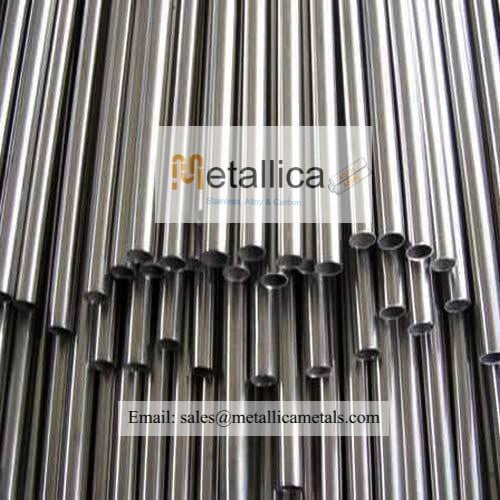

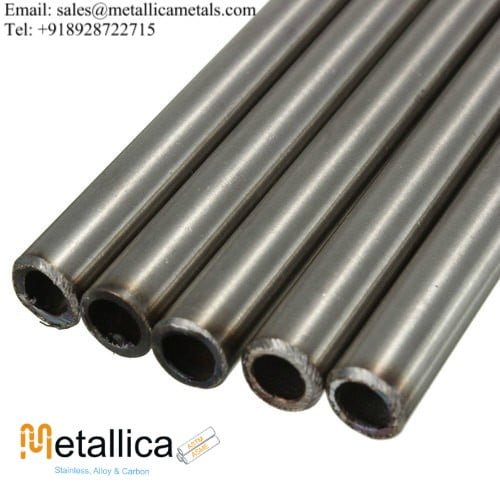

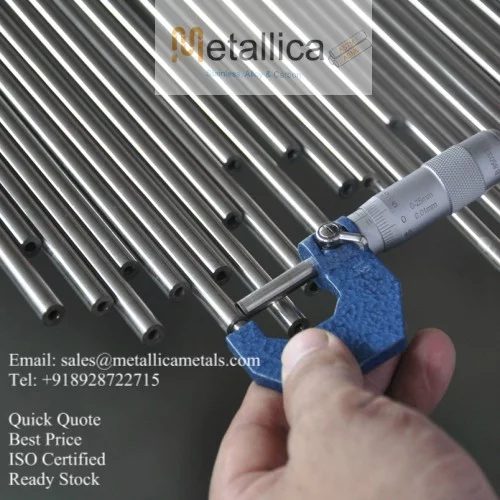

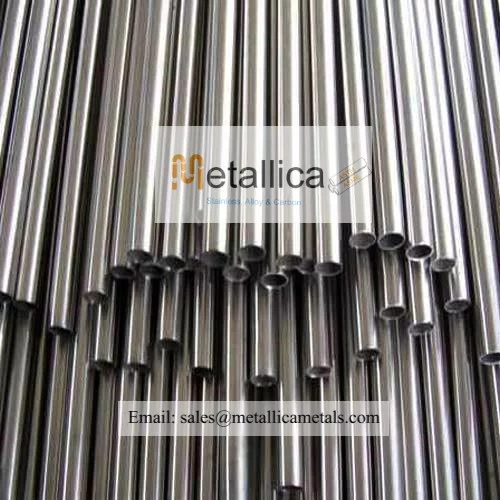

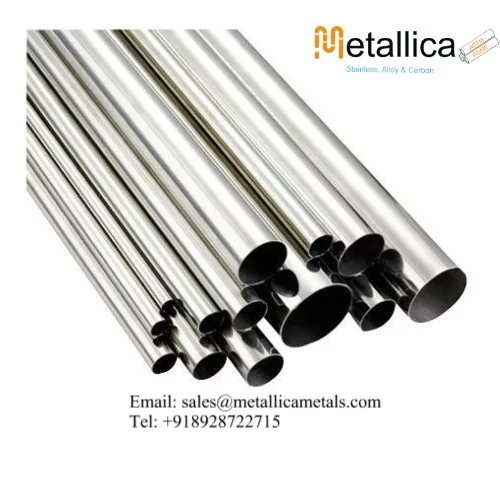

Stainless Steel Capillary Pipes/Tubes

215.00

Stainless Steel Capillary Pipes/Tubes Manufacturers & Suppliers in India

Metallica manufactures and supplies high quality of stainless steel capillary pipes/tubings with variety of sizes and grades in India. All standard capillary tubing sizes are available in 0.28-10mm or requested lengths. Contact Us Now for the reasonable prices in India!

  • Stainless steel capillary tube is one type of the stainless steel special shaped tube
  • Capillary stainless steel tubing is the standard specification for the welded/ERW, seamless and heavily cold worked welded austenitic and ferritic stainless steel. Our product range for stainless steel capillary pipes and tubes include all types such as Seamless, Welded, ERW, and EFW.
  • The inside surface of the tubes is free from oil, grease and other particles. This ensures, for example, an optimized and even flow of liquids and gases from the sensor to the measuring instrument.
  • Stainless tubing provides Good corrosion resistance,Heat resistance, Softness, Tight tolerances, Rust resistant, Withstand high weight, Easy to clean. Stainless tube is much lighter than its equivalent bar shape and therefore more practical for use in fabrication where weight is a concern.

Why Choose Metallica for Your Requirement for Stainless Steel Capillary Pipes & Tubes?

  • On Time Delivery: We can offer ex-stock supplies of stainless steel capillary tubes. For production quantities, we can deliver goods within 7-20 days.
  • Price & Quality Guarantee: All our seamless and welded stainless steel tubing products come with a price and quality guarantee, to ensure our customers are benefited the most out of our production and selling expertise.
  • Shipment of Goods More than 50 Countries Worldwide: We export our stainless steel capillary tube and seamless pipe products across the globe.
  • Flexible Payment Terms: We can discuss and agree on payment terms which are mutually beneficial. Call us to discuss the payment terms. We are here to give you the best options available.
  • Certification & Testing: All our stainless steel capillary pipe products are supplied with EN 10204 3.1 certification. Additionally we can also allow, third party inspection or buyer inspection of all products before delivery of goods.

Description

Stainless Steel Capillary Pipes/Tubes Manufacturers & Suppliers in India – 201 /304 /316 Capillary Pipes & Tubes

Our stainless steel capillary pipes and tubes are certified to the requirements of  ASTM A554 standard and most user specifications. Metallica manufactures stainless steel capillary tubing from the finest quality raw materials. Stainless steel capillary tubes in grade 304,304L/H,304LN, 316L are generally available in stock in size range of 0.28-10mm.

Stainless Steel Capillary Pipes & Tube Supply Range

Size 0.28-10mm
W.T 0.08-1.2mm
Standard A554/A312/A249/A268/A270
Grades 201/202/301/304/304L/316/316L/310S/409L/430/416, etc Stainless Steel tube
Length 6-9m or as requested
Surface treatment No.1 – 2B – Matte finish – #400 Bright – #600 Bright – 6K Mirror – 8K Mirror – Hair Line
Delivery Condition Bright Annealed, Polished or Annealed and Pickled
Form Round, Straight, Hydraulic, etc
End Plain End, Bevelled End
Type As welded, ERW, EFW,seamless, semi-seamless, bead removed

Stainless Steel capillary tubes for medical needle:

Stainless Steel capillary tubes for medical needle Grade Straight/ Coil tubing
TP 202, TP 304, TP 304L, TP 316/316L, TP321, TP316SS TP310S/ Incoloy800/825/600/625/718 Monel400/ K-50 etc.
Stainless Steel capillary tubes for medical needle Standard Straight/ Coil tubing
ASTM, GB, AISI, JIS, DIN,EU
Stainless Steel capillary tubes for medical needle Diameter Straight/ Coil tubing
0.33mm-76mm
Stainless Steel capillary tubes for medical needle Thickness Straight/ Coil tubing
0.1mm-3.0mm
Stainless Steel capillary tubes for medical needle Length Straight/ Coil tubing
Depending on your requirement 50-2000meters
Stainless Steel capillary tubes for medical needle Technique Straight/ Coil tubing
Cold drawing, precision rolling

Stainless Steel Capillary Tubing is generally used for structural purposes and applications that range from aesthetic to highly functional

Gas and liquid lines Coal mine detection seamless coil tubing
Medical instruments (hypodermic needle) Deep-sea oil drilling seamless coil tubing
Chromatography Instant water heater with seamless coil tubing
Measurement in remote thermometer systems (with or without compensation)Available Grades : 304, 304L, 316, 316L Available Water dispenser beverage machine with coil tubing
Hydraulic control lines with seamless coil tubing Refrigerating Equipment, Condensers
Marine seamless coil tubing Beverage Machinery, machines in brewery industry
Oilfield test cable coil tubing Evaporators,Heat Exchanger
High-pressure instrumentation coil tubing Liquid/ Gas Transportation
Health and medical grade seamless coil tubing CNG with coil tubing
Cold heat exchanger seamless coil tubing Other Industries

Chemical Composition for Stainless Steel Capillary Pipes & Tubes

Grades UNS C Mn P S Si Cr Ni Mo
TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
TP304L S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0
TP316 S3160 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
TP316L S31603 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.0-3.0

Mechanical Properties for Stainless Steel Capillary Pipes & Tubes

Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
Treatment Min. Ksi (MPa), Min. Ksi (MPa), Min.
º F(º C)
TP304 Solution 1900 (1040) 75(515) 30(205) 35
TP304L Solution 1900 (1040) 70(485) 25(170) 35
TP316 Solution 1900(1040) 75(515) 30(205) 35
TP316L Solution 1900(1040) 70(485) 25(170) 35

Quality Tests for Stainless Steel Capillary Pipes & Tubes

From the receipt of raw materials to the final inspection of the finished products – we do everything we can to ensure our customers receive only the very best quality. Of course, all tubes of a non-destructive and / or destructive testing may be subjected. We have the HP-0 approval by the TÜV and also meet many other quality requirements. Final Inspection:- IGC Test Dimensions Surface, Physical Testing, Grade Check, Product Analysis, Hardness Test, Bend Test, Chemical And Mechanical Analysis, Pitting Resistance Test, Intergranular Corrosion Test, Water Pressure, Crack Detector.

Heat Treatment (Annealing) for Stainless Steel Capillary Pipes & Tubes

304/304L is not hardenable by heat treatment. Cold working increases tensile strength and hardness. Annealing range is between 1850° and 2050°F. Cool rapidly. Water should be used for heavier sections; air for lighter sections. The stress relieving range is between 400° and 750°F

Surface Finishes for Stainless Steel Capillary Pipes & Tubes

Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1mm, Polished Grit 120 – 600, Mirror Polished. Other finishes available upon request.

Flattening Test for Stainless Steel Capillary Pipes & Tubes

For material heat treated in a continuous furnace flattening tests shall be made on a sufficient number of pipes to constitute 5 % of the lot, but in no case less than 2 lengths of pipe.

Markings for Stainless Steel Capillary Pipes & Tubes

Bright annealed tubing is line–stenciled with OD, wall, ASTM specifications, size, grade, heat number, production date and time. OD polished tube is marked on one end of each tube with a removable label stating ASTM specification, manufacturer, grade and heat number. Continuous line stencil available on request.

Different wall thickness, materials and surfaces as well as lengths can be produced on inquiry.

SS Capillary Tube SIZE OD (in) (mm) NOMINAL WALL THICKNESS (in) (mm) OUTSIDE DIAMETER TOLERANCE (in) (mm) LENGTH TOLERANCE (in) (mm) WALL THICKNESS TOLERANCE (%)
½ 12.7 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18,-0 +/-10.0%
¾ 19.1 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18,-0 +/-10.0%
1 25.4 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18,-0 +/-10.0%
38.1 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18,-0 +/-10.0%
2 50.8 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18,-0 +/-10.0%
63.5 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18,-0 +/-10.0%
3 76.2 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18,-0 +/-10.0%
4 101.6 0.083 2.11 +/-0.015 +/-0.38 +⅛, -0 +3.18,-0 +/-10.0%
6 152.4 0.109 2.77 +/-0.030 +/-0.76 +1, -0 +25.4,-0 +/-10.0%

Stainless Steel Capillary Tubes, Seamless Capillary Tube, Welded Capillary Tubes Ex- Stock

304 Stainless Steel Capillary Tube SS Seamless Capillary Tube
304L Stainless Steel Capillary Tube 310S SS Capillary Tube
304H Stainless Steel Capillary Tube 316 SS Capillary Tube
309 Stainless Steel Capillary Tube 316L SS Capillary Tube
310 Stainless Steel Capillary Tube 316Ti SS Capillary Tube
310S Stainless Steel Capillary Tube 321/321H SS Capillary Tube
316 Stainless Steel Capillary Tube 347/347H SS Capillary Tube
316L Stainless Steel Capillary Tube 304 Stainless Steel Capillary Tubing
316Ti Stainless Steel Capillary Tube 304L Stainless Steel Capillary Tubing
321/321H Stainless Steel Capillary Tube 304H Stainless Steel Capillary Tubing
347/347H Stainless Steel Capillary Tube 309 Stainless Steel Capillary Tubing
304 SS Capillary Tube 310 Stainless Steel Capillary Tubing
304L SS Capillary Tube 310S Stainless Steel Capillary Tubing
304H SS Capillary Tube 316 Stainless Steel Capillary Tubing
309 SS Capillary Tube 316L Stainless Steel Capillary Tubing
310 SS Capillary Tube 316Ti Stainless Steel Capillary Tubing
347/347H Stainless Steel Capillary Tubing 321/321H Stainless Steel Capillary Tubing

Note:

  • Mill test certificates will be issued according to EN 10204/3.1B
  • All tubes shall be supplied as per applicable ASTM A554 Specification.
