| Product | Stainless Steel Pipe Fittings (Elbow, Tee, Reducer, Union, Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Expansion Joint, Adapters, Outlets, Steam Traps, Long Radius Bend, Flanges and Valve) |
|---|
| What is a Pipe Fitting? | -A pipe fitting is used in a piping system to join multiple pipes of same diameter and thickness or different sizes. Pipe fittings help to regulate the flow or to measure the flow.
-Pipe fittings are generally manufactured by cold working processes or hot working processes. Hot working or forging processes are generally used to manufacture carbon steel and alloy steel butt weld and forged fittings, while cold working process are mainly used to produce stainless steel elbows, tee and reducers.
-A butt weld pipe fitting is made by the process of hot forming that includes bending and forming to shape. The starting material of butt weld fitting is a pipe that is cut to length, heated and molded into specific shapes by means of dies. Heat treatment is also done to remove residual stresses and obtain desired mechanical properties. |
|---|
| What are the Various Types of Pipe Fittings? | -Stainless Steel Buttweld Pipe Fittings
-Stainless Steel Threaded pipe fittings
-Stainless Steel Socket weld pipe fittings
-Stainless Steel Outlet Pipe Fittings
-Stainless Steel Flanges
-Stainless Steel Seamless Pipe Fittings
-Stainless Steel Welded or 100% X Ray Fabricated Pipe Fittings |
|---|
| Stainless Steel Pipes Stock & Production Range | -Type: Seamless, ERW, EFW, SAW, LSAW
-Size: 1/8”-72” (Or Custom Sizes)
-W.T.: SCH5S-XXS (Or Custom Sizes)
-Standard: ASME/ANSI B36.10, B36.19
-Stainless Steel Pipes: ASTM/ASME SA/A213 /A312 TP304, 304L, 316, 316L, 321/321H, 347/347H |
|---|

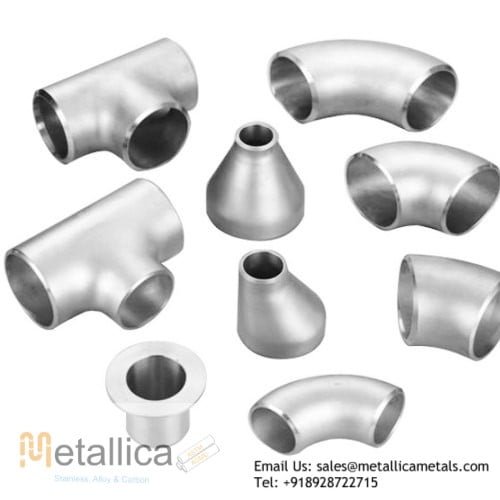

| Stainless Steel Buttweld Pipe Fittings Production Range | -Type: Elbow, Pipe Bends (3D, 4D, 5D, 6D, 10D), Equal & Reducing Tee, Pipe Cap, 180 Degree Elbow (LR & SR), 90 Degree Elbow (LR & SR), 45 Deg. Elbow (LR & SR), Lap Joint Stub End, Lateral Tee, Eccentric & Concentric Reducer,
-Size: 1/2"–72" (or as per Custom Drawings)
-W.T.: 2mm – 120mm (or as per Custom Drawings)
-Standard: ASME/ANSI B16.9, ASME B16.28, ASME B16.25, ASME/ANSI B16.49, MSS SP-75, MSS SP-43, DIN2605/2615/2616, EN 10253
-Grades: ASTM/ASME SA/A403 WP304, WP304L, WP316, WP316L, WP321, WP321H, WP347, WP347H |
|---|

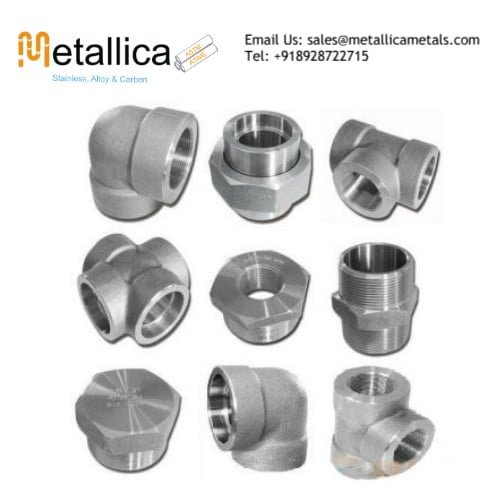

| Stainless Steel Forged Pipe Fittings Production Range | -Type: Pipe Union, Cross, Elbow, Tee, Half Coupling, Full Coupling, Branch Outlets, Forged Plug, Hexagon Bushing,
-Connection: Thread/NPT (M/F), Socket Weld, Screwed
-Size: 1/2”- 4”
-Rating: 2000#, 3000#, 6000#, 9000# or 2000LB, 3000LB, 6000LB, 9000LB
-Standard: ASME/ANSI B16.11, MSS SP 83, MSS SP 97, MSS SP 95
-Grades: ASTM/ASME SA/A182 F304, F304L, F316, F316L, F321, F321H, F347, F347H |
|---|
| Stainless Steel Flanges Production & Stock Range | -Type: Slip on Flange, Threaded Flange, Weld Neck Flange, Spectacle Blind Flange, Blind Flange, Socket Weld Flange,
-Face: RF/FF/RTJ
-Size: ½”- 60”(or as per customer drawing)
-Rating: 150#, 300#, 600#, 900#, 1500#, 2500#, 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
-Standard: ASME/ANSI B16.5, ASME /ANSI B16.47 A&B
-Grades: ASTM/ASME SA/A182 F304, F304L, F316, F316L, F321, F321H, F347, F347H |
|---|
| Size Range | 1/2" – 60" |
|---|
| Thickness | STD, XS, XXS, SCH10, SCH20, SCH30, SCH40, SCH60, SCH80, SCH160
Max. W.T. 200mm |
|---|
| Surface Finish | -Annealed & Pickled for Stainless Steel and High Temperature Nickel Alloy Buttweld Fittings
-Sand Blast, Black Painting, Galvanizing Finish for Carbon Steel & Alloy Steel Buttweld Fittings |
|---|
| Test Certificates | Test Certificates are available with materials, as per EN 10204 3.1 or 3.2 |
|---|
| Inspection | -Buyer Inspection or Third Party Inspection Acceptable
-At Metallica, all fittings and flanges are subject to strict inspection at each stage of the production process, starting from raw material purchasing to product dispatch. |
|---|
| Packing | Wooden Pallets, Gunny Bags, Wooden Box, or As per Customer Request |
|---|
| Price Guarantee | 100% Price Guarantee |
|---|
| Quality Guarantee | 100% Quality Guarantee |
|---|
| Delivery | 100% On Time Delivery
2-3 Days for In Stock Items
15-30 Days for Volume Products |
|---|
| Why Choose Us As Your Source for Pipe Fittings? | -Large Scale Enterprise – Metallica is biggest stock holding, manufacturing and processing company of carbon steel, stainless steel and nickel alloys pipe fittings in India. Our large volume production, sales and purchase enables us to offer our products at the most competitive prices in the industry.
-Testing of Pipe Fittings – All seamless or welded pipe fittings supplied by Metallica are subjected to chemical and mechanical tests during the various stages of production.
-Marking & Packing of Pipe Fittings – Marking on all pipe fittings is as per the predefined rules in the specification.
-Test Certificates & Inspection of Pipe Fittings – All our pipe fittings are supplied with Mill test Reports, as per EN 10204 3.1. We can also allow third party inspection of all our products before delivery.
-We have own QC team to control the quality to meet particular standard strictly
-Short Lead Times – We can offer seamless, welded and forged pipe fittings with shortest delivery time.
-We can produce either standard or non-standard of the pipe fittings. |
|---|
| Where Does Metallica Sell Pipe Fittings in India? | Mumbai, Delhi, Bangalore, Hyderabad, Ahmedabad, Chennai, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Indore, Thane, Bhopal, Visakhapatnam, Pimpri & Chinchwad, Patna, Vadodara, Ghaziabad, Ludhiana, Agra, Nashik, Faridabad, Meerut, Rajkot, Kalyan & Dombivali, Vasai Virar, Varanasi, Srinagar, Aurangabad, Dhanbad, Amritsar, Navi Mumbai, Allahabad, Ranchi, Haora, Coimbatore, Jabalpur, Gwalior, Vijayawada, Jodhpur, Madurai, Raipur, Kota, Guwahati, Chandigarh, Solapur, Hubli and Dharwad, Bareilly, Moradabad, Mysore, Gurgaon, Aligarh, Jalandhar, Tiruchirappalli, Bhubaneswar, Salem, Mira and Bhayander, Thiruvananthapuram, Bhiwandi, Saharanpur, Gorakhpur, Guntur, Bikaner, Amravati, Noida, Jamshedpur, Bhilai Nagar, Warangal, Cuttack, Firozabad, Kochi, Bhavnagar, Dehradun, Durgapur, Asansol, Nanded Waghala, Kolapur, Ajmer, Gulbarga, Jamnagar, Ujjain, Loni, Siliguri, Jhansi, Ulhasnagar, Nellore, Jammu, Sangli Miraj Kupwad, Belgaum, Mangalore, Ambattur, Tirunelveli, Malegoan, Gaya, Jalgaon, Udaipur, Maheshtala |
|---|
| Export Market for Pipe Fittings | Saudi Arabia, Argentina, South Africa, Singapore, America, Argentina, Aruba, Bahamas, Brazil, Canada, Chile, Colombia, Cuba, Jamaica, Mexico, Nicaragua, Panama, Paraguay, Peru, Puerto Rico, United States, Uruguay, Venezuela, Europe, Albania, Belarus, Belgium, Bulgaria, France, Germany, Greece, Hungary, Italy, Turkey, Ukraine, Africa, Algeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cameroon, Cape Verde, Central African Republic, Chad, Comoros, Congo, Djibouti, Egypt, Equatorial Guinea, Eritrea, Ethiopia, Gabon, Gambia, Ghana, Guinea, Guinea Bissau, Ivory Coast, Kenya, Lesotho, Liberia, Libya, Madagascar, Malawi, Mali, Mauritania, Mauritius, Morocco, Mozambique, Namibia, Niger, Nigeria, Republic of the Congo, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Somalia, South Africa, South Sudan, Sudan, Swaziland, Tanzania, Togo, Tunisia, Uganda, Zambia, Zimbabwe, Asia, Afghanistan, Armenia, Azerbaijan, Bahrain, Bangladesh, Bhutan, Brunei, Cambodia, China, East Timor, Georgia, Indonesia, Iran, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Laos, Lebanon, Malaysia, Maldives, Mongolia, Myanmar, Oman, Philippines, Qatar, Saudi Arabia, Singapore, South Korea, Sri Lanka, Taiwan, Tajikistan, Thailand, Turkmenistan, United Arab Emirates, Uzbekistan, Vietnam, Yemen, Australia |
|---|
| What are the Differences Between Socket weld and Butt weld Pipe Fittings? | -Socket Weld (SW) fittings are defined in the ASME B16.11. As with socket weld, a pipe is inserted into a recessed area of the fitting. Both the pipe and the fitting are square cut, with no need for beveled end or preparation other than cleaning the outside, which allows easy welding and installation.
-Butt weld (BW) fittings are defined in the ASME B16.9. They are welded at their ends to pipe end, with the same or different thickness as pipes. |
|---|
