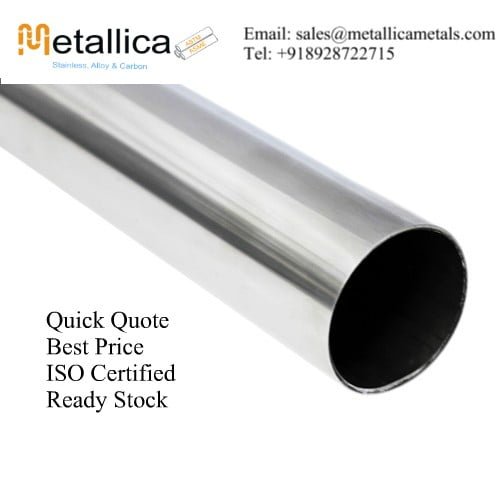

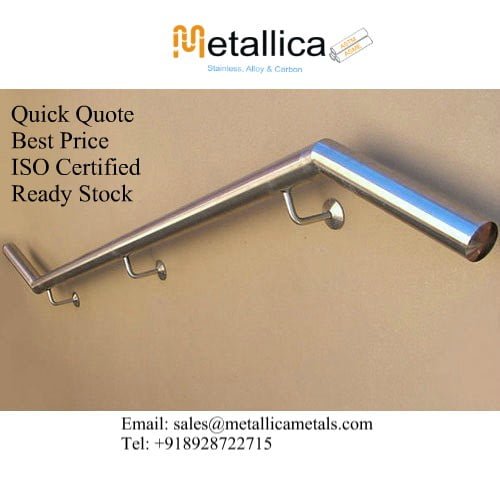

Stainless Steel Handrail Pipes/Tubes Manufacturers & Suppliers in India
Our stainless steel handrail pipes and tubes are certified to the requirements of ASTM standards and most user specifications. Metallica manufactures stainless steel handrail tubing from the finest quality raw materials under the supervision of skilled professionals. This pattern pipe is valued in the industry owing to its atheistic appeal. Our products are widely used in:-

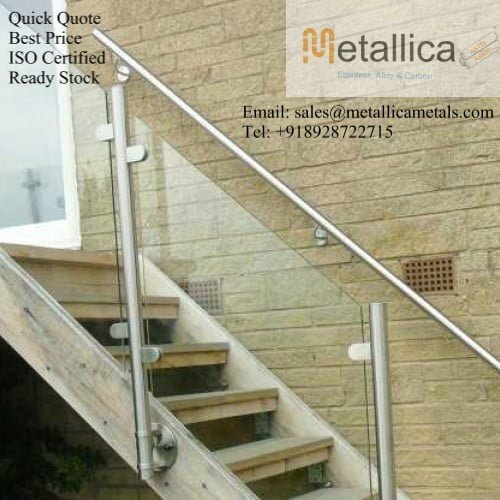

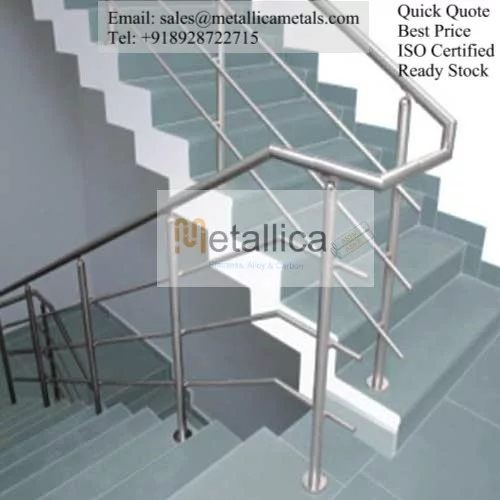

- Large shopping malls, airports, subways, commercial buildings and other projects.
- Home villas
- Swimming pool
- Balcony, Fence
Stainless Steel Handrail Pipes & Tube Supply Range
OUR PRODUCT CAN BE COMPLETELY PRODUCED AS CLIENT SAMPLE OR REQUIREMENT
| Size | 1/2″ NB to 24″ NB. Please refer to the Stainless Steel Handrail Size Dimensions Table below |
| W.T | 1.0-1.8mm |
| Standard | ASTM A213, ASTM A249, ASTM A269, ASTM A270, ASTM A790, ASTM A789 |
| Grades | 201/202/301/304/304L/310S/316/316L/410/416/430, etc Stainless Steel tube |
| Length | 5.8m or as requested |
| Surface treatment | No.1 – 2B – Matte finish – #400 Bright – #600 Bright – 6K Mirror – 8K Mirror – Hair Line |
| Delivery Condition | Bright Annealed, Polished or Annealed and Pickled (Satin Brush/ Gold/ Rose Gold/) |
Chemical And Mechanical Properties for Stainless Steel Handrail Pipes & Tubes As Per ASTM standards
| Technology | Hot rolled and cold rolled ERW welded stainless steel tube |
| Certificate | ASTM A554, A249, A269, A270, A312; BS EN10312:2002; MS1988; ISO9001:2008 |
| GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | |
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | |
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Mechanical Properties And Quality Tests for Stainless Steel Decorative Pipes & Tubes as per ASTM standards
| Material | Heat Treatment | Temperature Min.º F(º C) | Tensile Strength Ksi (MPa), Min. | Yield Strength Ksi (MPa), Min. | Elongation %, Min |
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
From the receipt of raw materials to the final inspection of the finished products – we do everything we can to ensure our customers receive only the very best quality. Of course, all tubes of a non-destructive and / or destructive testing may be subjected. We have the HP-0 approval by the TÜV and also meet many other quality requirements. Final Inspection:- IGC Test Dimensions Surface, Physical Testing, Grade Check, Product Analysis, Hardness Test, Bend Test, Chemical And Mechanical Analysis, Pitting Resistance Test, Intergranular Corrosion Test, Water Pressure, Crack Detector.
Stainless Steel Handrail Tube Size Dimensions Chart
Different wall thickness, materials and surfaces as well as lengths can be produced on inquiry.
| Size | WT |
|---|
| (a*b*c) | 86*59*51 | 1.0-1.8 |
| (a*b) | 65*47 | 1.0-1.8 |
| 80*40 | 1.0-1.8 |
| 80*36 | 1.0-1.8 |
More Details:
Ball joint handrails, also known as ball joint rails, platform handrails, are kind of products widely used in water plants, sewage treatment plants, power stations, chemical plants, petrochemical industries etc. Metallica Metals produce and supply a wide selection of ball joint handrails including various types of stanchions, balls, cross tubes, elbows, etc to meet every customer’s requirement.
Steel Grating Application
1) Galvanized steel grating from the flat width of 65mm-200mm thickness 5mm-20mm, such as welding formed galvanized steel grating for the post-heavy-duty galvanized steel grating suitable for large yard, docks, coal road bridges, etc., can carry large trucks pass.
2) Galvanized steel grating (Bearing Bar Spacing 40mm) spacing of 40mm steel hot dip galvanized steel grating is the most economical and lightweight varieties in the span of a smaller case, is the ideal choice.
3) Galvanized steel grating (Bearing Bar Spacing 60mm) flat steel bar spacing of 60mm to 50mm hot dip galvanized steel grating used in mining mineral mining industry to solve the problem of splash on the plate, often designated for mining processing plant.
4) Galvanized steel grating (Bearing Bar Spacing 30mm) spacing of 30mm steel hot dip galvanized steel grating for the industry’s most versatile breed in the common hot dip galvanized steel grating series, the impact on the surface the contact force of the strongest.
Metallica is a familiar production house of Stainless Steel Tubes, which is used in nuclear fuel reprocessing, acid production, and oil / gas piping. Few exact rules exist for selecting through-hardening or surface-hardening grades, where tungsten and vanadium will form carbides, both of which increase the hardness and stability of the finished product.
We have emerged as the leading producer and supplier of these Stainless Steel Seamless Tubes, which have high creep and oxidation resistance. While in a molten state, these steels are exposed to a vacuum which removes hydrogen and, to a lesser degree, oxygen and nitrogen. Stainless Steel Welded Tubes offered by Metallica provides highly safe and reliable operations.
Note:
- Mill test certificates will be issued.
- All tubes shall be supplied as per applicable to ASTM Specification.
Other different shapes
Oval Tube; Hexagon Tube; Flat Oval Tube; Fan Shaped Tube; Arched Tube; Rectangle; Plum Blossom Shaped Tube; U shape tube; Square, Capillary, Triangle, Decorative, etc.
