• Metallica is one of the largest dealer of Bleed and Flushing Ring in India. We offer the most competitive prices for various pipe fittings.

  • bleed ring is a ring section with one or more radial pipe connections designed to fit between standard flanges within the bolt circle, using conventional gasket material. The ring normally comes with a 1/2 inch socket weld or 3/4 inch tapped for connecting with valves and instruments. The face of the ring can also be made to matched with any flange type, and has different sizes based on the ASME flange rating of the process piping.
  • The bleed ring can come in any material or size, and is designed for connecting valves and instruments. The face of the bleed ring can be manufactured to match with any flange type. The standard sizes for a bleed ring are NPS 1 to NPS 24 and ASME Pressure Classes 150 through 1500. It comes in many different materials such as carbon steel, stainless steel etc.
  • The flushing rings are used for flushing solution combined with diaphragm seals. This type of flushing flange or ring is clamped between process nozzle and diaphragm seal. The reducer flange is used to mount a larger diaphragm seal to a smaller process connection. This type of reducer flange is clamped between process nozzle and diaphragm seal.
  • Drip Rings, or Flushing Rings, are used in the oil or gas line. They are coupled between two seals. The Drip Ring is circular, as a ring, with one or two holes. They may have one or two branches, based the usage that is made for.
  • Pipe Fittings are an important piping component that helps in changing the direction of the flow such as elbows, tees, changes the size of the pipe such as reducers, reducing tees,  distribute the water supply from the main pipe to other pipes of equal size or lower size, etc. connect different components such as couplings and stop the flows such as Caps.
  • As one of the biggest supplier of Steel Pipes and Pipes Fittings in India, Metallica carries inventory of over 15,000 tons in its warehouses in Mumbai, Maharashtra India.

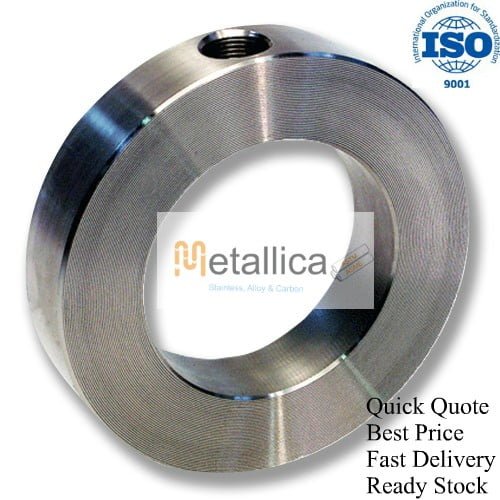

Bleed Ring, Flushing Ring, Flush Ring, Drip Ring, Vent Ring Manufacturer and Supplier in India at Low Price

Largest Bleed and Flushing Ring Manufacturers and Dealers in India!

Please contact us for any further question or inquiry regarding Bleed and Flushing Ring. We will promptly reply to you and offer you a reasonable price.

Stainless steel, alloy steel and carbon steel, etc are employed for fabricating this Bleed and Flushing Ring. We provide these pipe fittings at market leading rates.

If you are looking to purchase Bleed and Flushing Ring, please feel free to contact us on sales@metallicametals.com.

Flushing Ring Product Specification

Type Flushing Ring Type G
Size 24″ (DN600)
Standards ASTM, etc
Material Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc

Stainless Steel: ASTM A182 F304/304L/316/316L, etc

Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc.

Duplex stainless steel: ASTM A182 F51/F53/F55/F60, etc

Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800,

Hastelloy C276, Hastelloy C22, Hastelloy B1/B2/B3, Alloy 20, etc

Cu-Ni: 90/10,70/30, etc

Haet treatment Normalized / Annealed / Quenched / tempered
Applications Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Bleed Ring Product Specification

Type ASME B16.5 ASTM A182 316L Bleed Ring
Size 1/2″ – 24″ (DN15 – DN600)
Standards ASME 31.3, B16.5, B16.20, etc
Material Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc

Stainless Steel: ASTM A182 F304/304L/316/316L, etc

Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc.

Duplex stainless steel: ASTM A182 F51/F53/F55/F60, etc

Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800,

Hastelloy C276, Hastelloy C22, Hastelloy B1/B2/B3, Alloy 20, etc

Cu-Ni: 90/10,70/30, etc

Haet treatment Normalized / Annealed / Quenched / tempered
Applications Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Metallica manufactures Bleed & Flush Rings, Drip Ring from 1/2″ to 24″ in different types of materials as follow:

  • Carbon steel (ASTM 105, A516 Gr. 60/65/70, A350 LF2, A694 F60-65)
  • Stainless steel (AISI 304, 316, 321, 347)
  • Alloy steel (AISI Gr.1, Gr.5, Gr.9, Gr.91, Gr.11, Gr.22)
  • Nickel alloys
  • Duplex/Super duplex (F51, F53, F55, F44)
  • Incoloy (800, 800H, 800 HT, 825), Alloy 20
  • Hastelloy (C22, C276)
  • Cupronickel Cu-Ni
  • Monel 400
  • Inconel (600, 625)
  • Titanium (Gr. 1, 2, 3)

Applications of Bleed and Flushing Rings

  • Flush rings are used for diaphragm seals in order to prevent clogging of the instrument connection.
  • The flush ring is mounted between the process flange and the diaphragm seal.
  • Petrochemical industry
  • Pharmaceutical industry
  • Food industry
  • Aviation and aerospace industry
  • Architectural decoration industry
  • Oil and Gas Pipeline industry

Characteristics

  • The flushing ports allow the washing out of particles accumulated in front of the membrane.
  • The pressure chamber can be vented or drained or fled with a cleaning liquid and subsequently flushed, depending on the requirement.
  • Various nominal widths and forms allow adaption to the respective process flange.
  • Standard flushing connection: 1/2 NPT female
  • Sealing face:
    • Acc. to EN 1092-1 Form B1
    • Acc. to ASME B 16.5 RF
  • Materials: F53/316/316L/1.4401/1.4404,etc
  • A bleed ring can be used instead of an Orifice Flange union. It is easier to install and cheaper than installing orifice flanges, especially in a brown field application. It comes in many various materials such as carbon steel, stainless steel, alloy steel, depending on the use. They provide a convenient way of draining piping, taking samples, attaching instruments or even bleeding of a valve. When used with a valve and Blind Flange, it allows you to relieve the pressure if your valve is leaking before you remove the flange.

Other Features:

  • Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant.
  • We also produce pipes with special specifications according to customers’ requirements.
  • Bleed and Flushing Ring Available on Sale, by India’s Largest Stockholder and Manufacturer. Our Stainless Steel Bleed and Flushing Ring – Duplex and Super Duplex, are available for sale.
  • Leading Bleed and Flushing Ring manufacturers and suppliers, Metallica offers best quality Bleed and Flushing Ring with excellent chemical & physical properties and long service life. In addition to being one of the biggest dealer of Bleed and Flushing Ring, we also stock stainless steel pipes, alloy steel pipes, seamless pipes and carbon steel seamless pipes manufactured by Jindal and ISMT, which is another large seamless pipe manufacturer in India.
  • Buy Bleed and Flushing Ring at Factory Prices! Lowest Price Guaranteed! We Will Quote for Carbon Steel, Stainless Steel and Alloy Steel Fittings in 2 Hours with Mill Test Certificates! We are looking to develop a big network of buyers across India, with a clear focus on increasing our sales volume and customer base.
  • Metallica is one of the largest manufacturers, distributor and supplier of carbon steel Bleed and Flushing Ring, stainless steel Bleed and Flushing Ring and special alloy Bleed and Flushing Ring.
  • Keeping in mind our objective to build up a big customer base in India and overseas, we are offering maximum discounts to our customers for  Bleed and Flushing Ring, forged pipe fittings, carbon steel seamless pipes, carbon steel welded pipes, LSAW pipes and spiral welded pipes.
  • Being one of the largest volume Bleed and Flushing Ring dealer, we can guarantee you the lowest prices. At Metallica Metals, we believe in selling in volume and increasing our customer base across the globe, enabling us to work on low margins.
  • Pipe fittings are used to connect pipes or tubes in two ways:
    • By threading: Threaded pipes screw together to connect or join. Generally metal pipes are threaded and they have threaded fittings.
    • By slip fit: Slip fit pipes use sleeves that slip into one another. The plastic pipes are either threaded or slip fit.
